Industrial 16:9 wide screen monitors

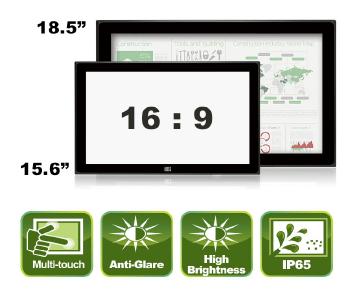

The DM-F industrial monitor series from ICP Germany is growing literally. The current 3:4 format of the 6.5" to 19" display sizes is extended by the 16:9 format for the medium display sizes 15.6" and 18.5". Thus the DM-F series gains two further wide screen monitors with a WXGA resolution of 1366x768 pixels in addition to the existing 21.5" and 23.8" monitors. The DM-FW variants are available either as resistive touch or projected capacitive touch with anti-glare and anti-UV protection.
The aluminum front panel is IP65 protected. The brightness of the monitors is 400cd/m². A VGA, HDMI and DisplayPort are available as input sources for image data. The touch screen can be connected to the PC system via the USB interface or optionally via RS-232. The monitors can be supplied with a voltage of 9~36VDC either via a terminal block or a lockable DC jack. In addition, the wide screen monitors offer versatile mounting options such as panel, rack or VESA 100 mounting, allowing them to be used flexibly as HMI operating systems or POS/ POI terminals.
Specifications
● 15.6"/ 18.5" industrial wide screen monitors with resistive and capacitive touch display
● WXGA resolution:1366x768
● Brightness: 400cd/m²
● IP65 protected front
● VGA, HDMI, DisplayPort, COM
● Panel, rack and VESA 100 mounting
● Operating temperature: -20 °C~+60 °C
● Voltage input: 9~36VDC
Applications
● HMI display device
● POS/POI terminal
Product link: https://www.icp-deutschland.de/index.php?lang=0&cl=search&searchparam=DM-FW
Datasheet: http://files.icp-deutschland.de/produkte/KC001914/web/icp/DM-F-Serie-datasheet-20190211.pdf
